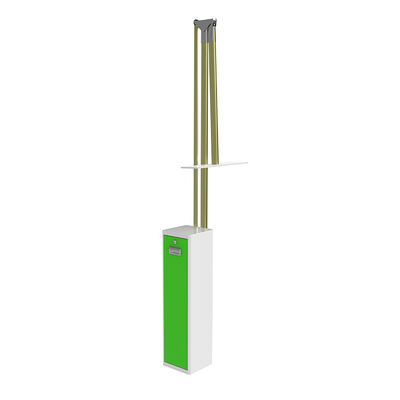

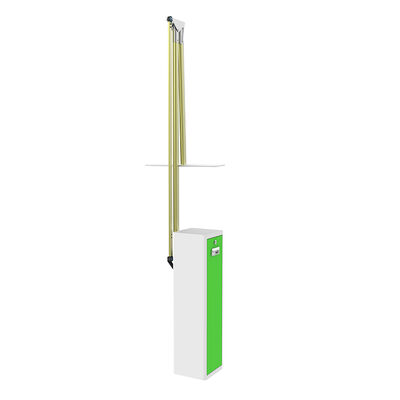

HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor

  • HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
  • HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
  • HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
  • HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
  • HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
Herkunftsort China
Markenname HCW
Zertifizierung CE
Modellnummer S300
Min Bestellmenge 2 Stück
Preis Verhandlungsfähig
Verpackung Informationen Holzkiste
Lieferzeit 5-8 Werktage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 100 Stück pro Tag

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Brand name HCW Produktmodell S300
Chassismaterial Kaltgewalztes Blech Armlänge 1-6 Meter
Armmaterial Aluminium/Schaum Motortyp Bürstenloser Gleichstrommotor
Geschwindigkeit 1,5-3S einstellbar Produktgröße 340*280*1045mm
Sicherheits- und Kontrollfunktionen Integriertes Steuer-Mainboard speziell für Parkschranken Armtyp Gerade/Klappbar/Zaun/LED-Schaum/Teleskoparme
Hervorheben

Extreme weather resistance Boom Barrier Gate

,

1.5-3S adjustable speed Automatic Barrier Gate

,

DC Brushless Motor Parking Barrier Gate
Hinterlass eine Nachricht
Produkt-Beschreibung
HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed Boom Barrier
HCW robust parking barrier gate features 1.5-3 second adjustable speed and exceptional tolerance in extreme weather conditions, providing reliable traffic control in high-humidity environments.
Product Overview
The S300 barrier gate is a durable traffic control solution designed for efficient operation. Operating on AC 220V±10% (50Hz), it withstands temperatures from -25℃ to 70℃ and humidity levels of 5%-95%, ensuring reliable performance in harsh conditions. Its bidirectional design allows flexible installation.
Technical Specifications
Brand Name HCW
Product Model S300
Chassis Material Cold Rolled Steel Plate
Boom Length 1-6 meters
Arm Material Aluminum/Foam
Motor Type Brushless DC Motor
Speed 1.5-3S Adjustable
Product Dimensions 340×280×1045mm
Warranty 1 Year
Humidity Range 5% - 95%
Safety & Control Features Anti-collision Rebound/Loop Detection/Infrared
Arm Types Straight/Folding/Fence/LED Foam/Telescopic Arm
Key Features and Benefits
  • Smart Operation: Supports wireless remote control (up/down/stop) and manual button operation, seamlessly integrating into modern access control systems
  • Patented Integrated Core Mechanism: Combines frame, reducer and transmission system to reduce vibration and improve operational precision
  • Adjustable and Safe Arm System: Tension spring system safely adapts to different arm lengths, providing high security and flexibility
  • Durable and Aesthetic Housing: Corona high-temperature powder coating (180°C-250°C) provides corrosion resistance and maintains smooth appearance
  • Multi-layer Safety Protection: Customizable safety system including ground loop, pressure sensors and infrared detectors for 360° protection
Motor and Performance
Equipped with brushless DC motor (80W/120W), this telescopic barrier provides fast 3-second or stable 6-second lifting cycles. The compact yet powerful CW203 telescopic barrier is ideal for parking lots, toll stations, and secure areas.
