SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control

  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
  • SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control
Herkunftsort Shenzhen, China
Markenname hongchuangwei
Zertifizierung CE
Modellnummer CW423
Min Bestellmenge 1
Preis USD550~750 per piece
Verpackung Informationen Holzkisten
Lieferzeit 5-8 Werktage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 100 Stück pro Tag

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Antriebsspannung Gleichstrommotor 24V/20W Farbe Gelb
Kommunikationsport RS485/RS232 Kommunikation Größe 1400*300*980 mm
Produktionsprozess CNC -Laserschnitt Leistungsaufnahme AC100-240V, 50/60 Hz
Elektromagnetische Arbeitszyklus 100% Durchgangsrichtung Einzelner Richtungs- / BI-Regisseur
Hervorheben

20W Motor Power Swing Barrier Turnstile

,

4 Pairs Infrared Detection Swing Gate Turnstile

,

2 Million Working Life Access Control Turnstile
Hinterlass eine Nachricht
Produkt-Beschreibung

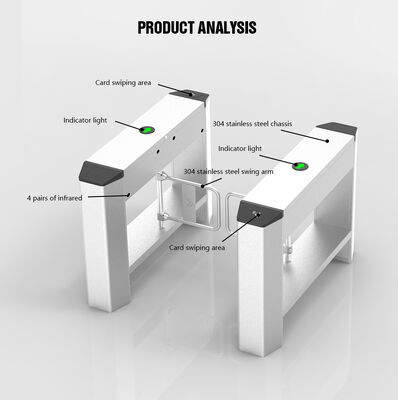

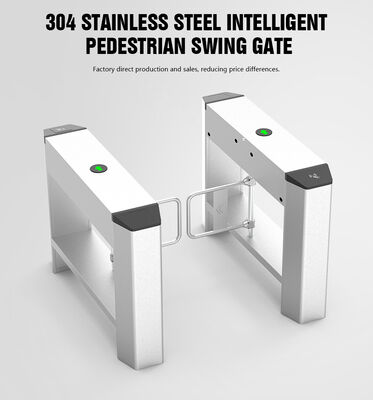

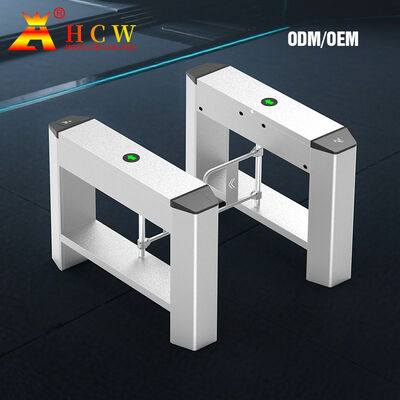

SS304 Swing Barrier Turnstile with Infrared Sensors and DC Brushed Motor
Premium Entrance Control Solution
The CW423 intelligent bridge-type oblique angle swing turnstile provides secure access control for high-traffic areas. Engineered with STC CPU chip technology and a durable DC brushed motor, this system delivers exceptional reliability with 4 pairs of infrared detection sensors for precise movement tracking.
Key Features
  • Advanced Security: Sound and light alarm triggers when unauthorized access is attempted
  • Flexible Configuration: Adjustable opening/closing speeds and bidirectional traffic settings
  • Safety Mechanisms: Anti-pinch and anti-shock functions with 120Nm impact resistance
  • Clear Indicators: LED traffic direction displays for optimal crowd management
  • Fail-Safe Operation: Automatic door release during power outages

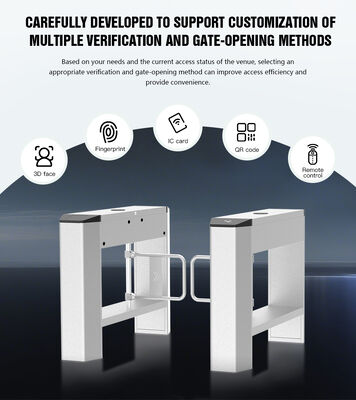

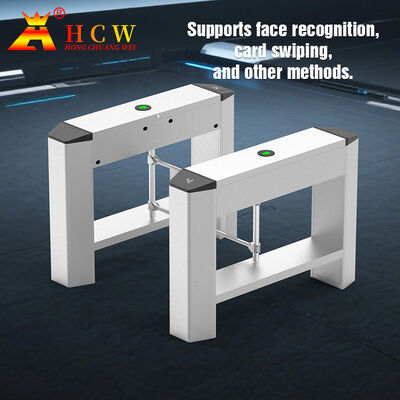

  • System Integration: Compatible with IC/ID card readers, barcode scanners, and access control systems
Technical Specifications
Product Model CW423
Power Supply AC220V±10%, 50HZ±10%
Operating Temperature -25℃ to 70℃
Motor Power 20W
Throughput Capacity 30-40 persons/minute
Infrared Sensors 4 pairs

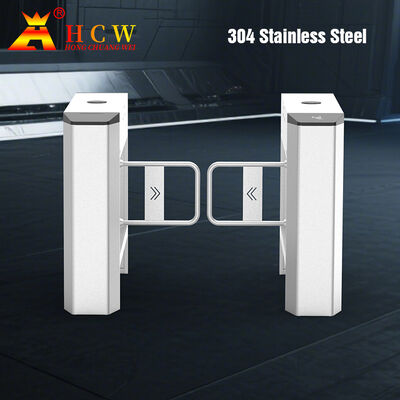

Construction 1.0mm thickness 304D stainless steel

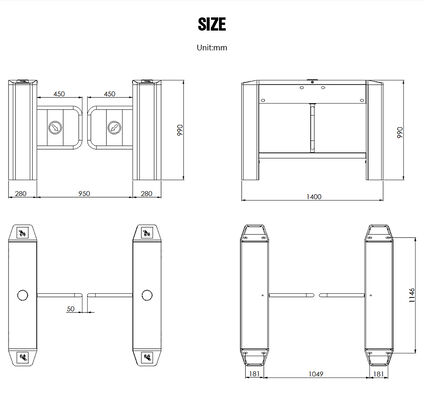

Dimensions 1400mm (L) × 280mm (W) × 990mm (H)
Weight Approx. 55kg (single channel)
SS304 Swing Barrier Turnstile with 20W Motor Power 4 Pairs Infrared Detection and 2 Million Working Life for Entrance Control 0
Ideal Applications
This professional-grade turnstile is designed for demanding environments including CBD business centers, government facilities, corporate offices, high-end residential complexes, and educational institutions requiring secure, efficient access control.
