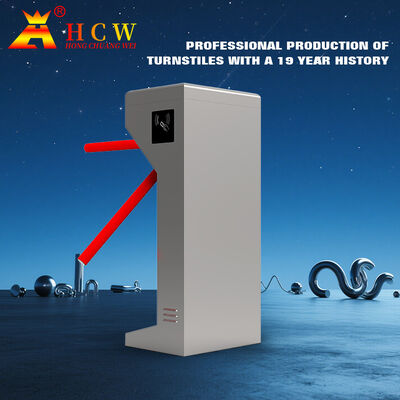

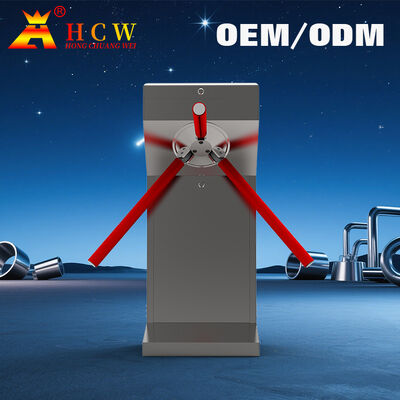

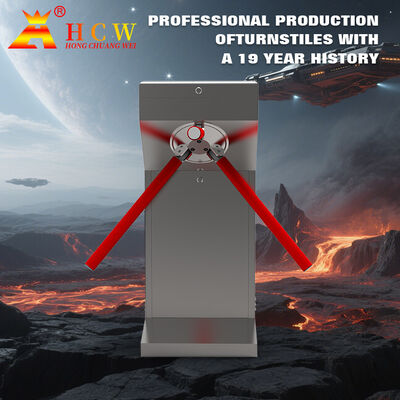

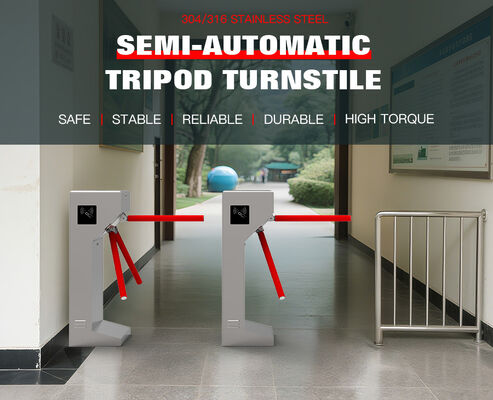

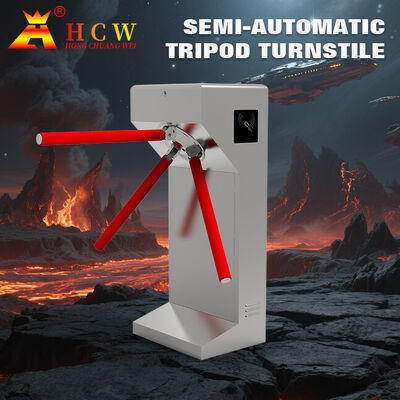

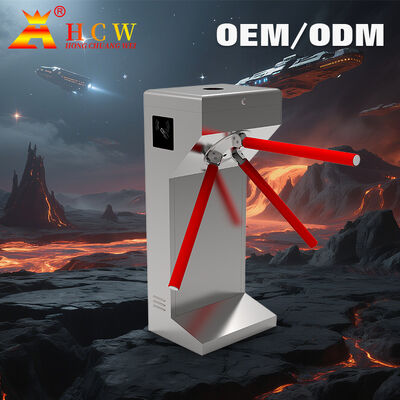

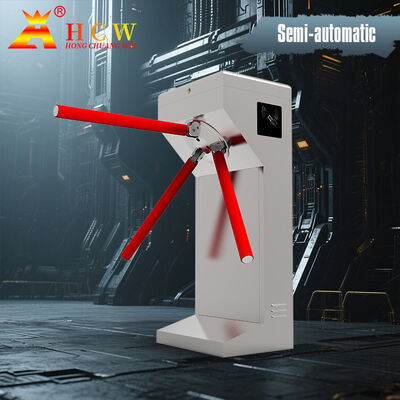

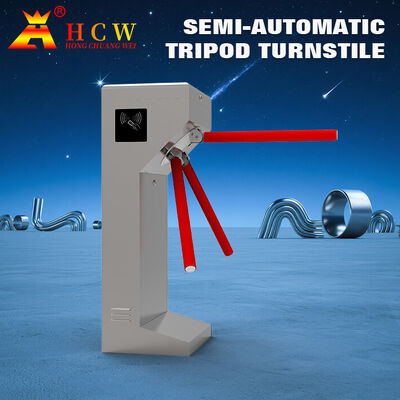

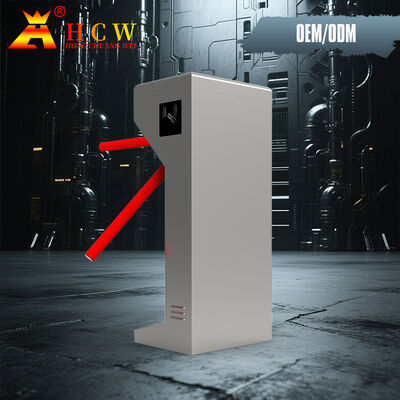

304 Stainless Steel Tripod Turnstile Gate with Long Service Life and High Reliability for Access Control
| Place of Origin | Shenzhen,China |
|---|---|
| Markenname | Hongchuangwei |
| Zertifizierung | CE/ISO 9001 |
| Model Number | CW301 |
| Minimum Order Quantity | 2 piece |
| Preis | Verhandlungsfähig |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails

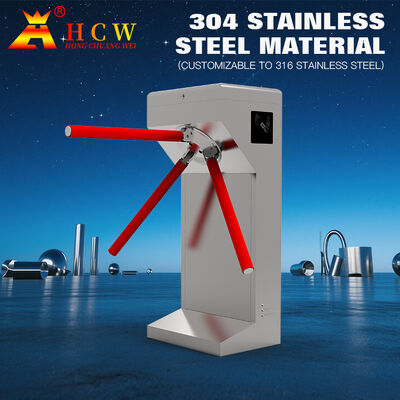

| Material | 304 Stainless Steel | Case Thickness | 0.91mm |
|---|---|---|---|

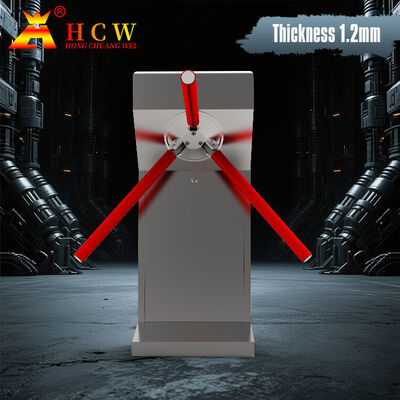

| Top Cover Thickness | 1.12mm | Name | Tripod Turnstile |
| communication | relay signal | input voltage | 110V |
| electromagnet | yes | mechanical part | movement |
| Hervorheben | 304 Stainless Steel Tripod Turnstile Gate,Long Service Life Tripod Turnstile Gate,High Reliability Access Control Turnstile |
||
Produkt-Beschreibung
HCW Stainless Steel Tripod Turnstile Gate with Long Service Life Components and High Reliability for Personnel Access Control
24V Working Voltage 304 Stainless Steel Tripod Turnstile CW301

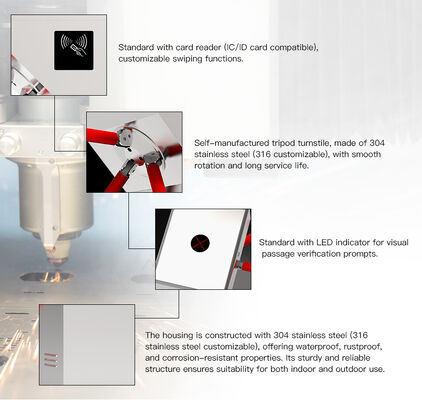

This turnstile gate features a pressed stainless steel plate construction with an attractive, durable design. The system includes standard electrical interfaces for easy integration with various card reading systems including magnetic, bar code, ID, and IC cards. It provides orderly access control while preventing unauthorized entry and includes a special fire control interface for emergency situations.

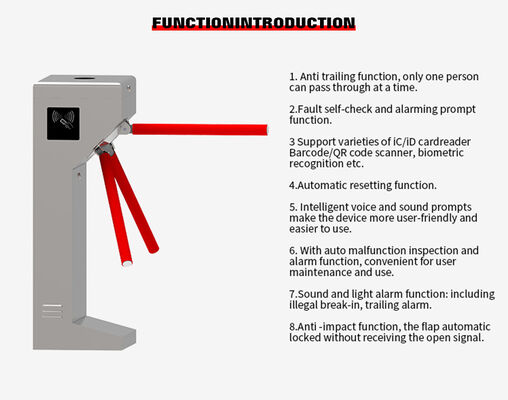

Key Features
- Impact protection: Prevents pole loss from external force impacts while protecting the movement mechanism
- Emergency release: Pole automatically drops during power failure to meet fire safety requirements
- Reliable operation: Solenoid valve locking with photoelectric induction unlocking provides long service life, high reliability, and fast opening
- Flexible access control: Adjustable settings for single or multiple person passage via card reading
- People counting: Integrated with access control software to track passage direction and count
- Anti-shock protection: Pole remains locked when no opening signal is received
- Automatic reset: Cancels access permission if user doesn't pass within 4 seconds of card reading

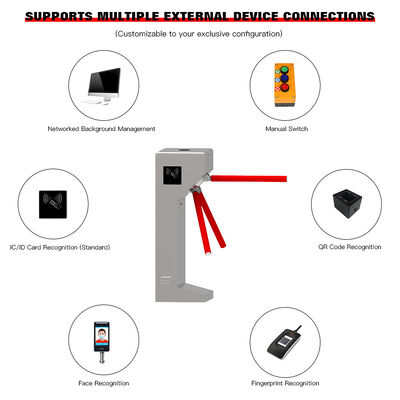

- Universal compatibility: Standard communication interface connects with various access control and attendance systems

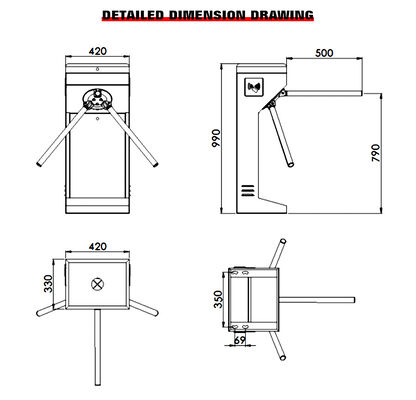

Technical Specifications

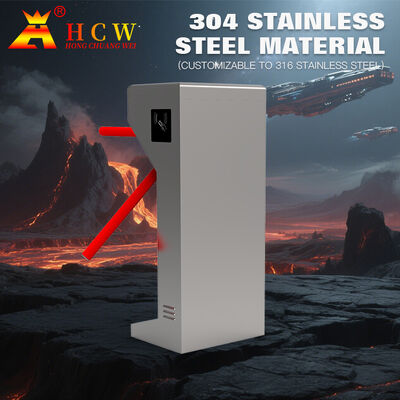

| Housing Material | 304 stainless steel |
|---|---|
| Core Reliability | 3 million operations with no faults |
| Weight | 35kg (bridge type) |
| Lane Width | 550mm |
| Arm Driving Force | 3kg |
| Drive Mode | Digital |
Product Images
